Dirt King
Shock Relocation Kit
Shock Relocation Kit
Couldn't load pickup availability
Description

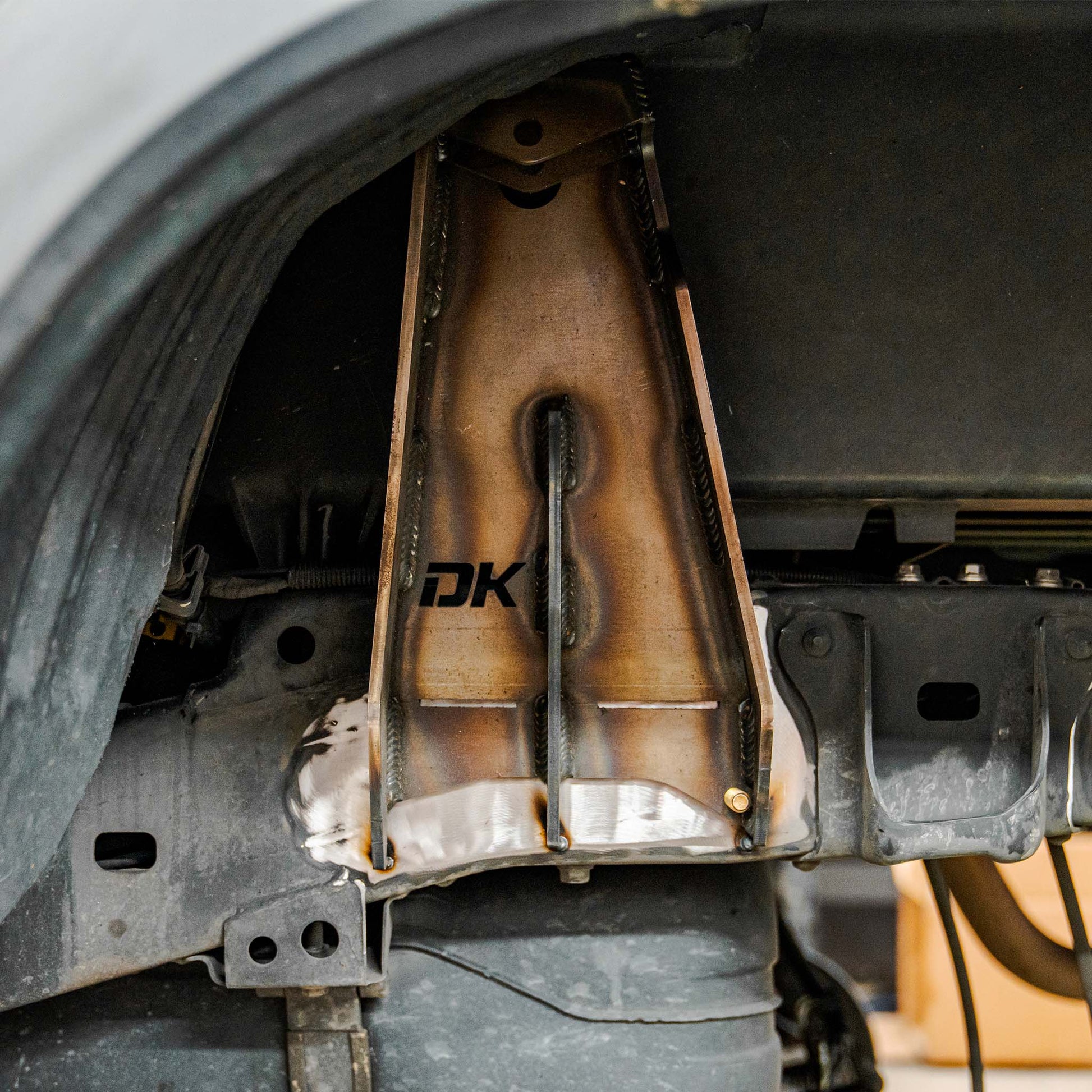

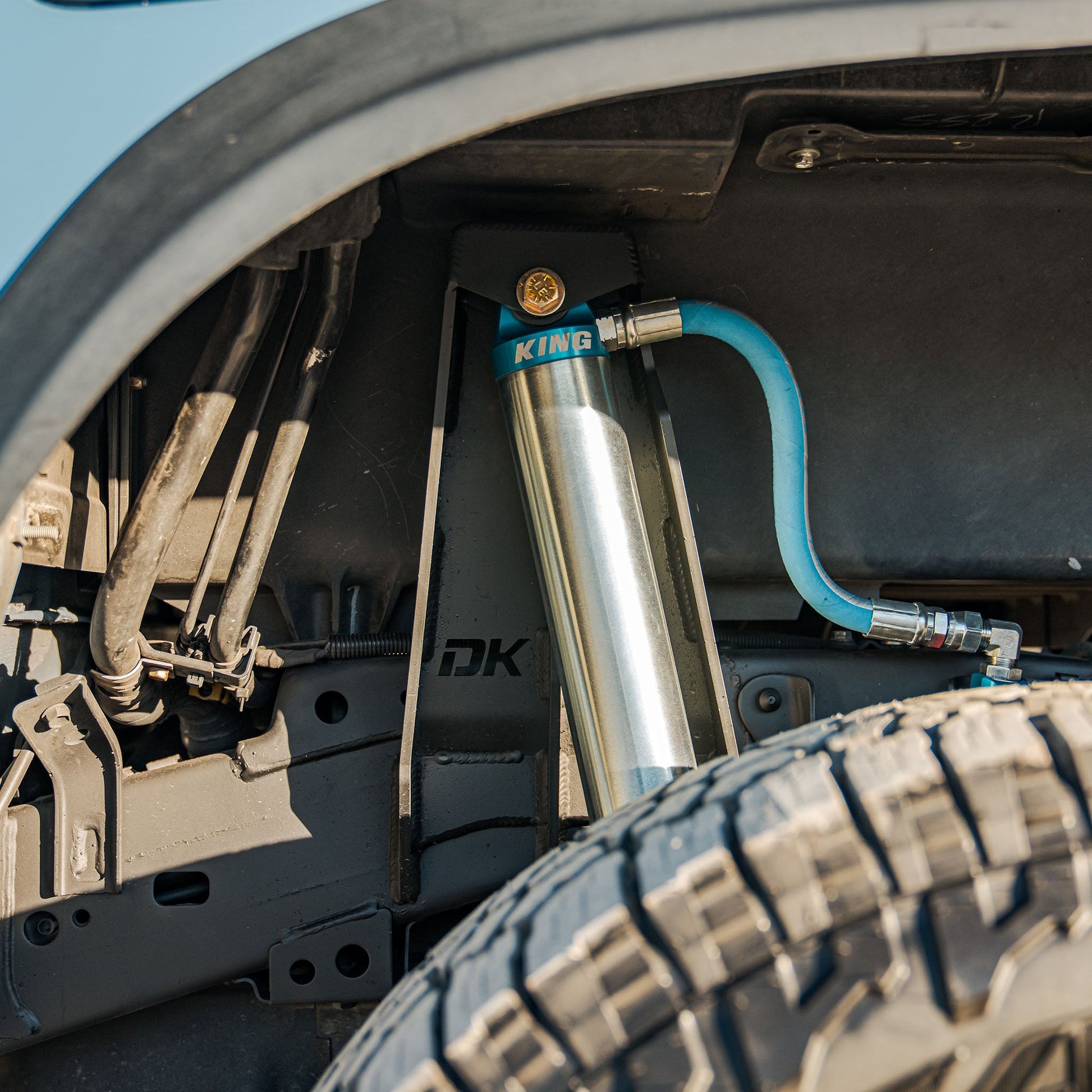

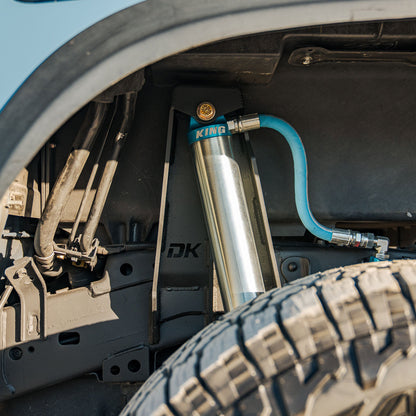

Introducing the Dirt King Rear Shock Relocation Kit for the 2005-2023 Tacoma. This kit is engineered to maximize rear suspension travel by increasing shock stroke by 50%. Shocks mounted in the factory location typically measure 2.5" x 8", the Dirt King relocation kit is designed to accommodate for 2.5" x 12" shocks. This allows for significantly improved vehicle articulation, increasing down travel without sacrificing up travel. The kit comes complete with 3/16" lower shock tabs and all the necessary hardware for a straightforward installation. For optimal performance, we recommend pairing this kit with aftermarket leaf springs and the Dirt King Shackle and Hanger Kit to fully unleash your vehicle’s potential.
Specifications
- Amount of Lift: 0-3” (based off leaf spring spec)
- Track Width: Requires 1.5" wheel spacers
- Maximum Backspacing: 4.5"

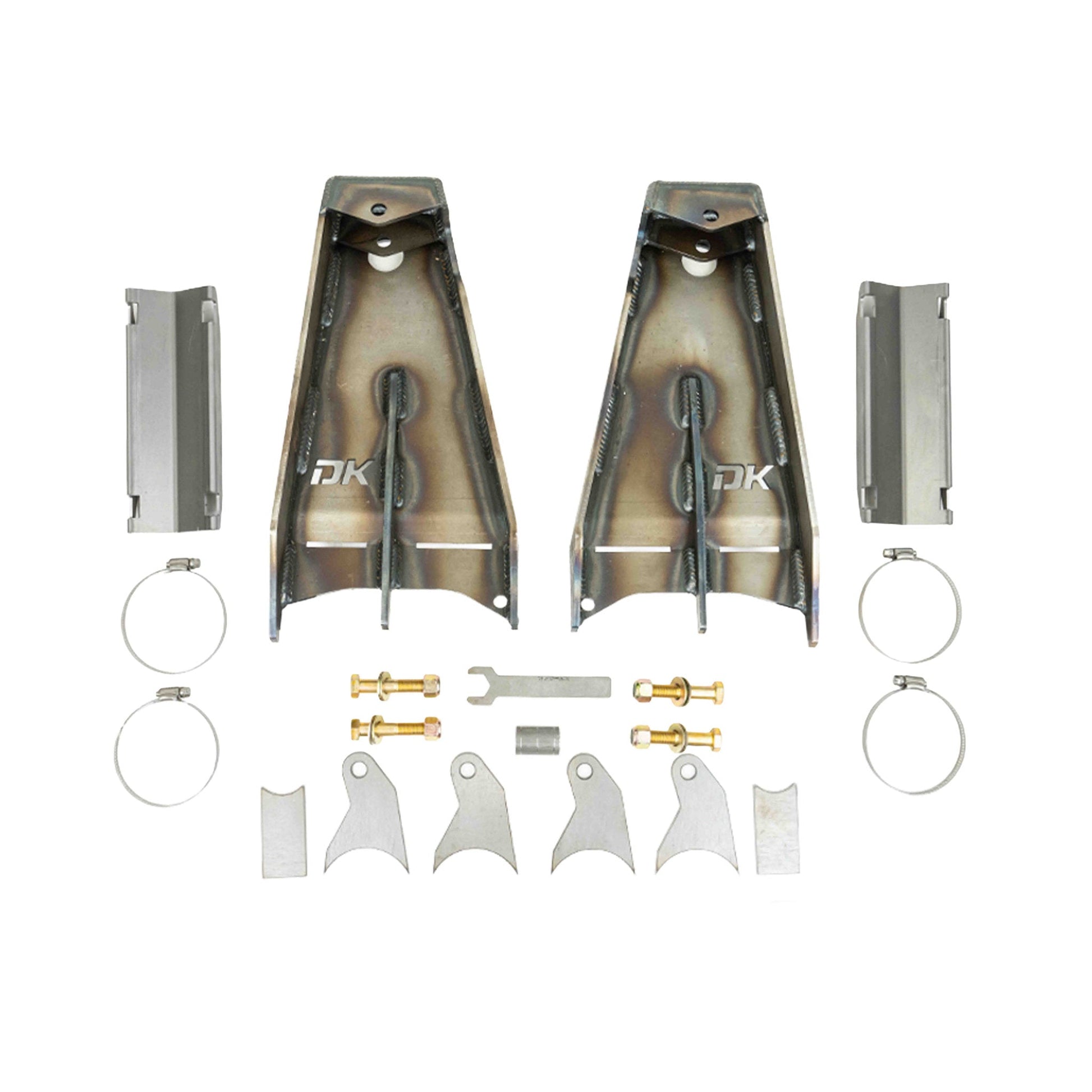

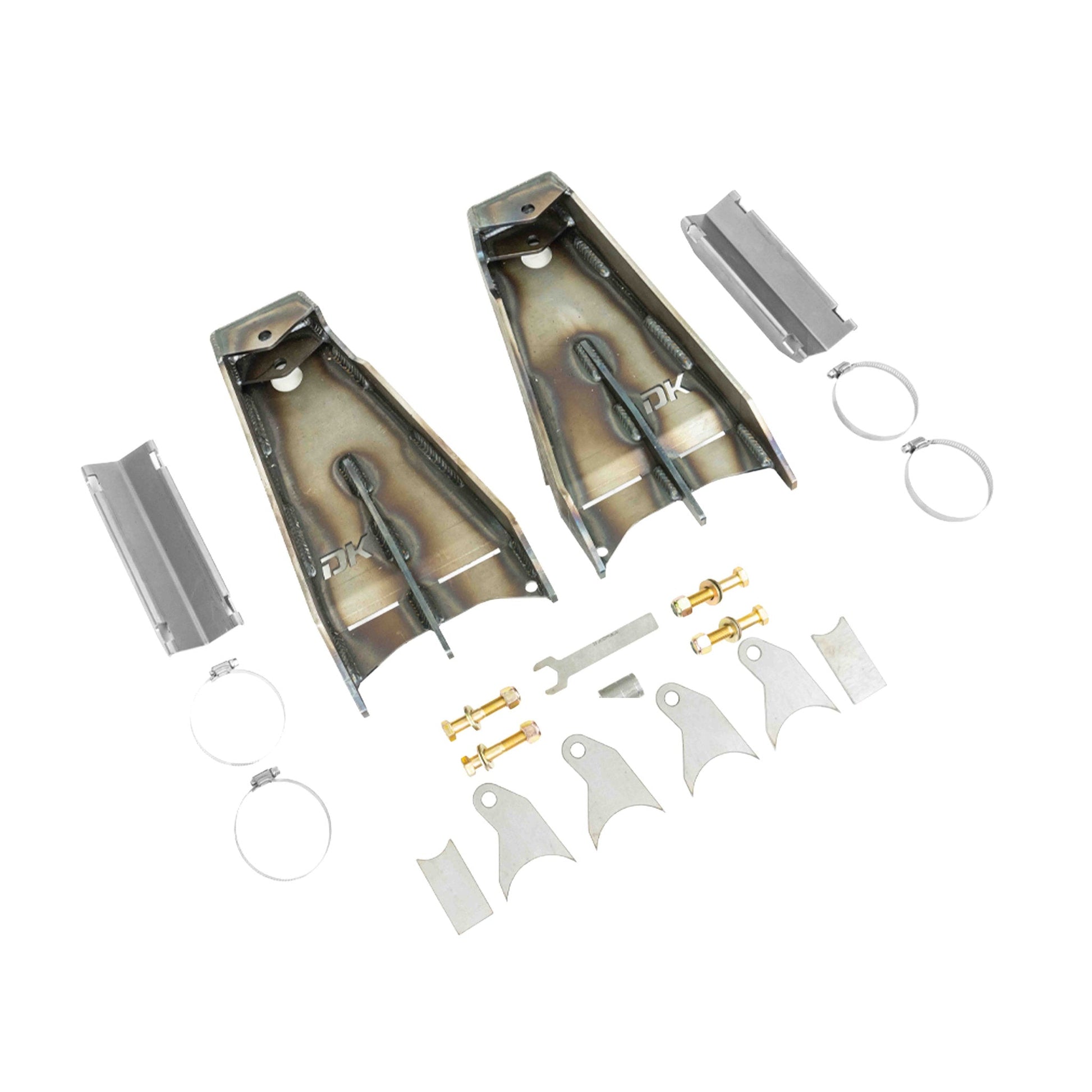

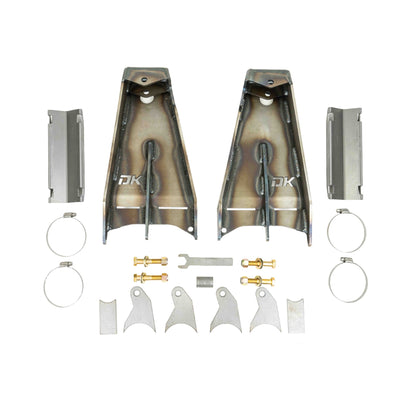

What's Included

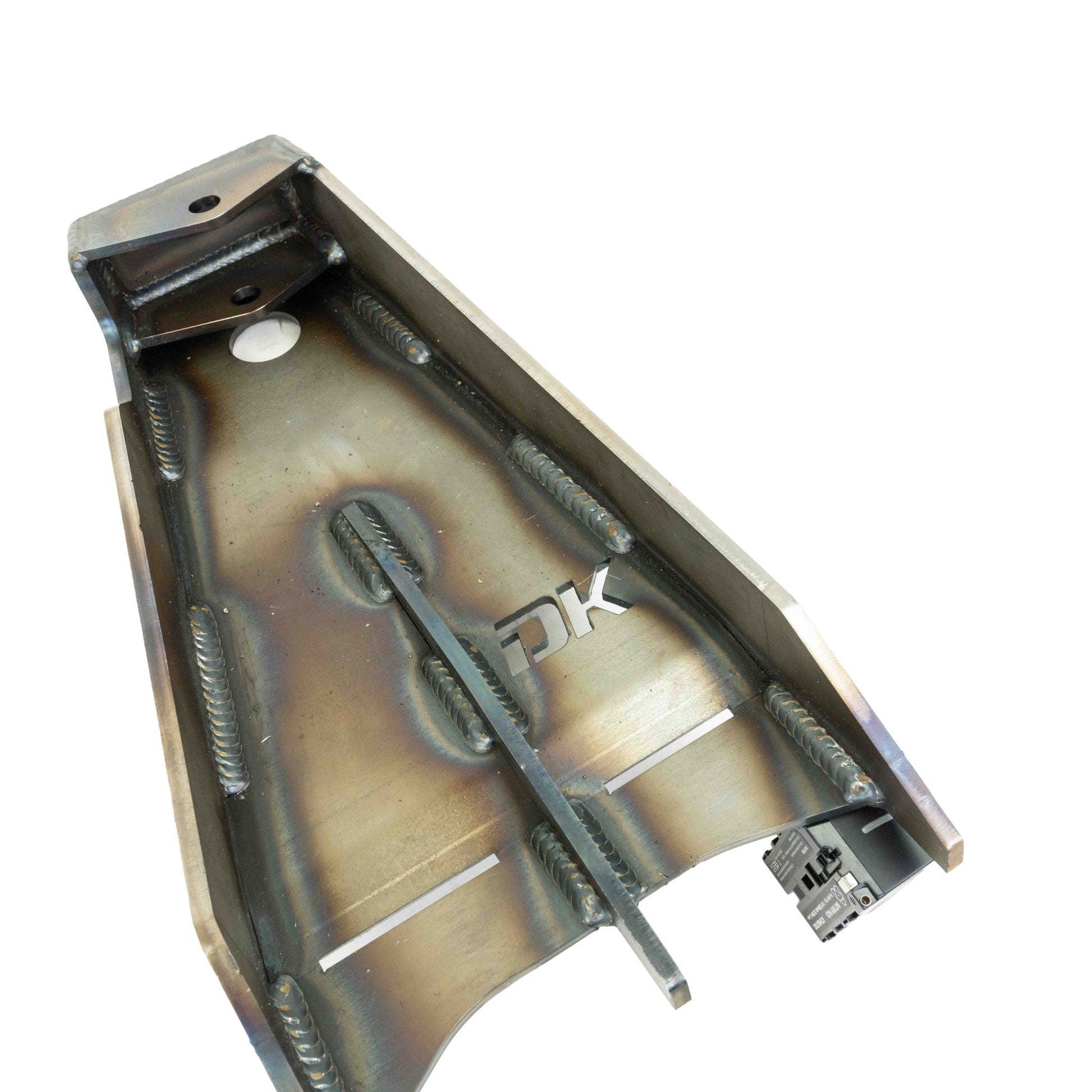

- Rear shock mounts
- Shock tabs
- Shock tab gussets
- Low profile wrench
- Reservoir mounts
- Grade 8 mounting hardware
- Dirt King sticker pack
- Installation Instructions
Features
- CAD designed
- Professionally MIG welded
- Proudly made in the USA
Instructions
Compatibility
2005-2023 Toyota Tacoma 2WD / 4WD 6 lug
*Compatible with smooth body shocks. Not compatible with bypass shocks.
